Description
- Pan / Tilt Minibot Inspection Robot
- New robotic 4-Wheel Drive platform
- Takes the best features of previous robots and combines them
- You can record and control it from a Smartphone
- Note: This is a special order item. Returns are not accepted on special order and clearance items unless they are defective, in which case the product may be repaired or replaced at Robqo’s discretion.

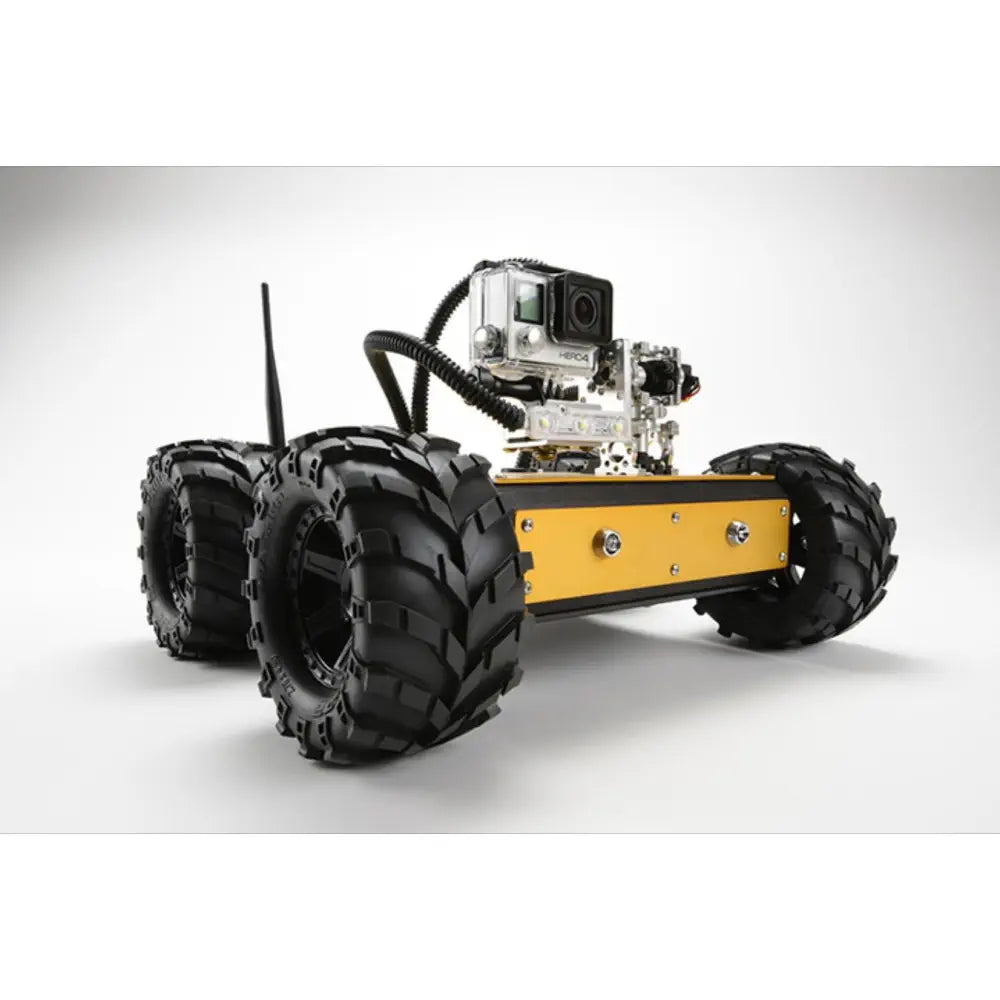

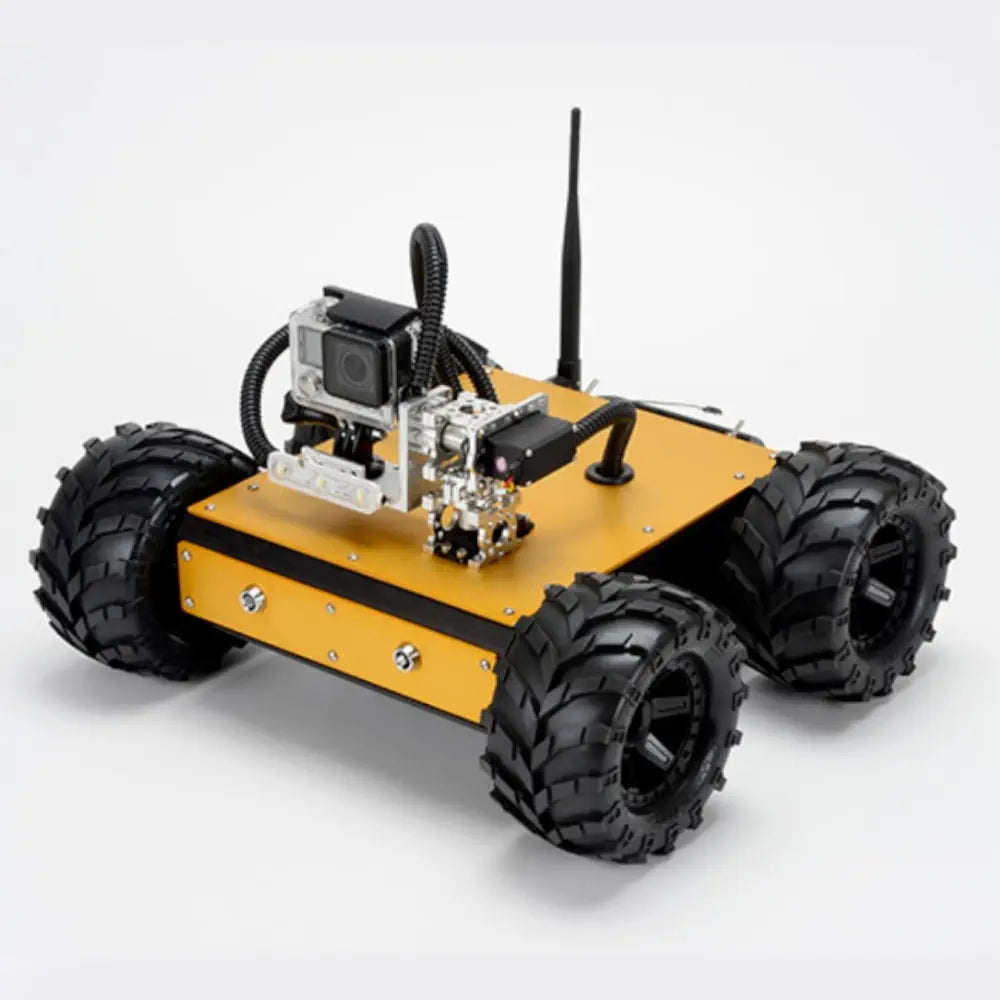

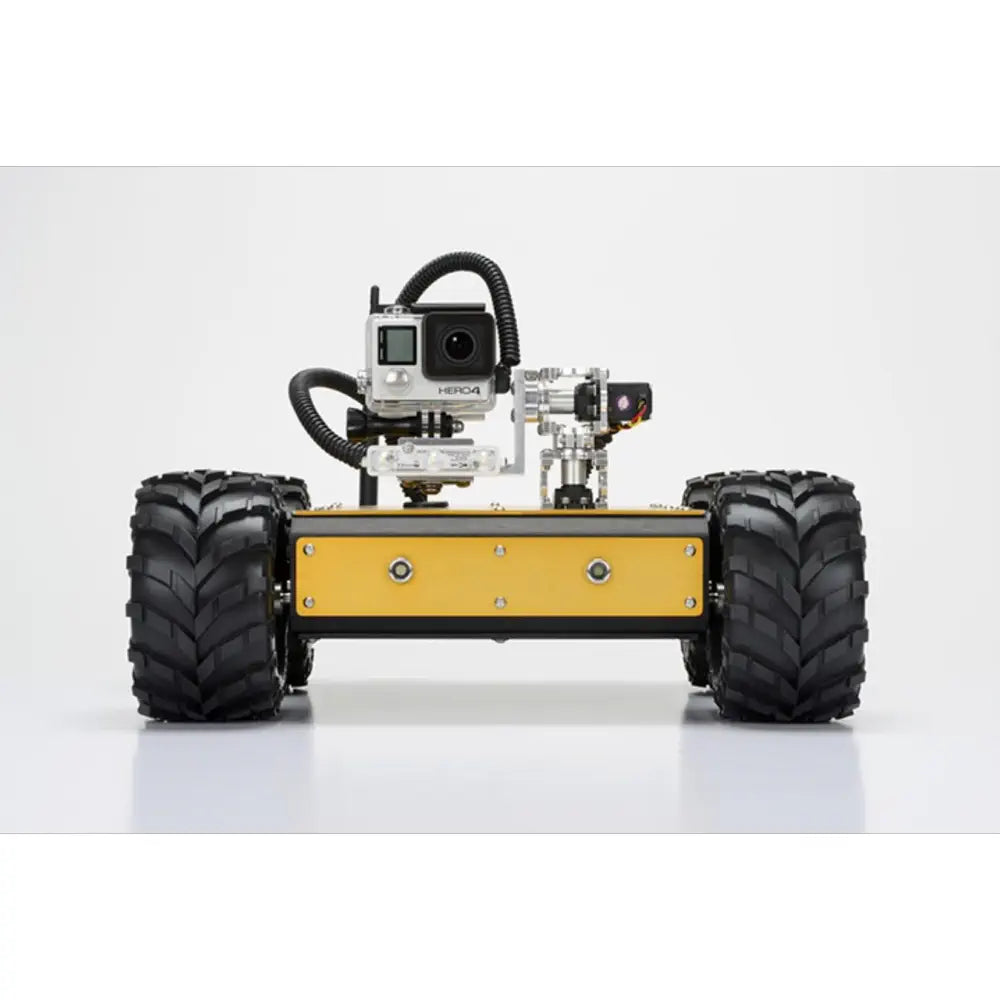

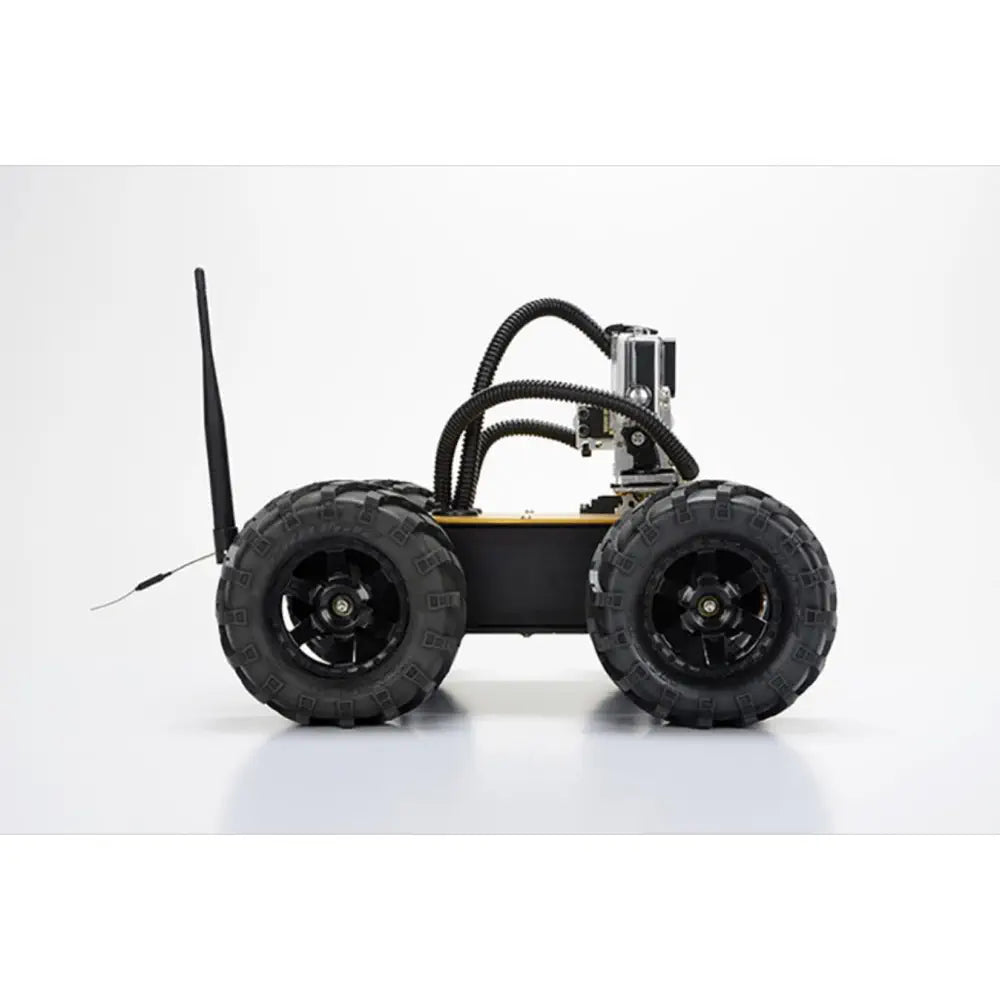

The Pan / Tilt Minibot Inspection Robot is a new robotic platform. It takes the best features of previous robots and combines them into one super platform for inspection, security, tactical and industrial applications. With its Go-Pro Camera ,you can record and control it from a Smartphone! With its 4WD wheels, it can spin on a dime. It is designed for multiple applications such as Law Enforcement, Engineering Education and Inspection.
Vehicle
4WD electric vehicle with high-torque gearing and motor and with rechargeable batteries. You can charge the P/T MINIBOT in the field with your own vehicles’ 12 volt battery. The P/T MINIBOT is perfect for confined spaces or remote operations. It weighs less than 10 Lbs
Vision System
This is a stable and reliable system. It includes a Go-Pro Hero Camera. This is a live video system, with its high powered transmitter and receiver you can view and record video or stills.
A teleoperated FPV UGV ( First Person View, Unmanned Ground Vehicle). You control it as if you were inside the vehicle itself. Drop it into a hazardous environment and record the video as you look up, down, left, right and everywhere in-between while sitting in a safe comfortable location!
Possible Application
- Crawl Space Inspection
- Wire/Cable installation
- Surveillance
- Reconnaissance
- Under-Vehicle Inspection
- Insurance Claims
- Law Enforcement
- Military
- Covert Investigation
- Pest Control
- Tactical / SWAT
- HVAC Inspection
- Disaster Restoration
- Energy Auditing
- Stadium Inspection
- Public Safety
- Building Inspection
- Chemical Plant
- Situational Awareness
- Engineering
- 1x Pan / Tilt Minibot Inspection Robot
- Size: 14” W x 12”L x 8” or 11” H
docReady(function() {$(‘button[aria-controls=unique-tab-5]’).one(‘click’,function() {$(“#iframe-video-1″).html(”);$(“#iframe-video-2″).html(”);$(“#iframe-video-3″).html(”);$(“#iframe-video-4″).html(”);$(“#iframe-video-5″).html(”);})});
Vehicle
- 4-Wheel Drive Platform
- Aircraft Grade Aluminum Shell

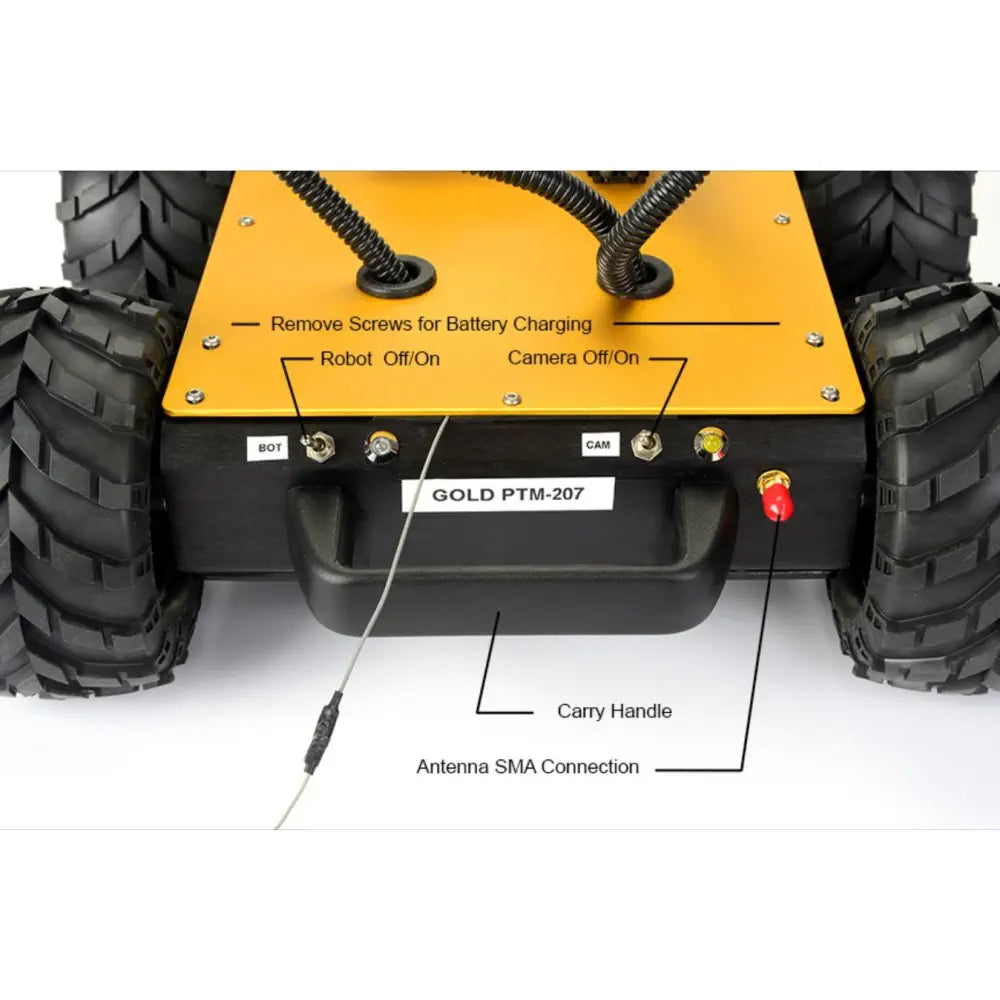

- Carry Handle
- Easy / Intuitive to use
- Hi-Torque Motors

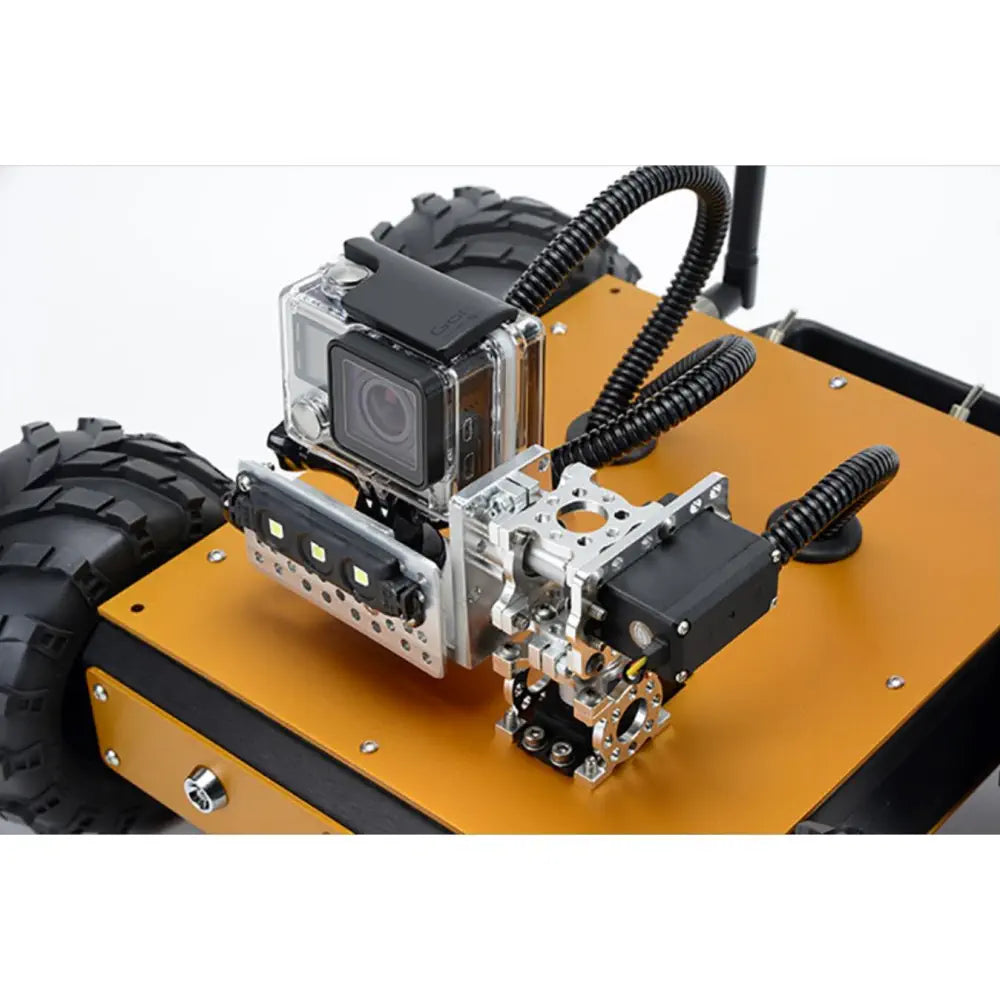

- Pan/Tilt Camera Mount
- Go-Pro Hero Camera
- Includes Battery Charger
- Lightweight: under 10 Lbs
- Low Profile -Perfect for Under-Vehicle Inspection.
- Live Video Feed
- DVR Upgrade Available
- LED Lights Upgrade Available
- Range 1200 Ft. LOS
- Rugged Off-Road Tires
- Interchangeable Wheels
- Runtime: 1 Hr
- Infra-Red Option Available
- Stainless-Steel Fasteners
- Upgrades available
- Multiple Cam Configurations
- Ground Clearance: 1.5”
- Zero Turning Radius
- Min Speed: .06 m/s
- Max Speed: .75 m/s (3.7 mph)
- Max Incline: 30 Degrees
- Water Resistance Upgrade available
Vision System
- Compact Color Camera
- Completely Mobile: no AC required.
- FPV (First person View)
- High-Power Transmitter/ Receiver
- Operators Control Unit
- GO-Pro Hero Camera
- Live Feed
- Recordable Video/Stills
- Virtual Reality Ready
- Rapid Deployment
- Range 500 Ft. LOS
