Description

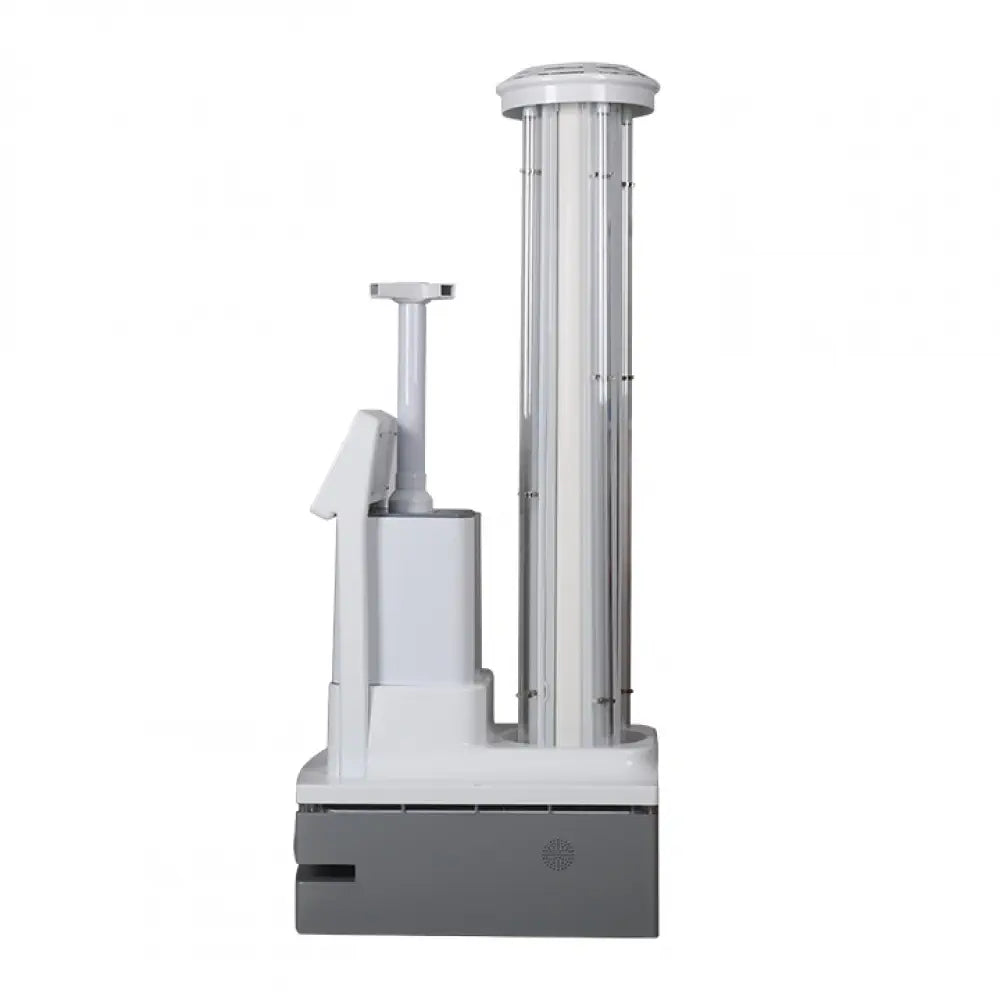

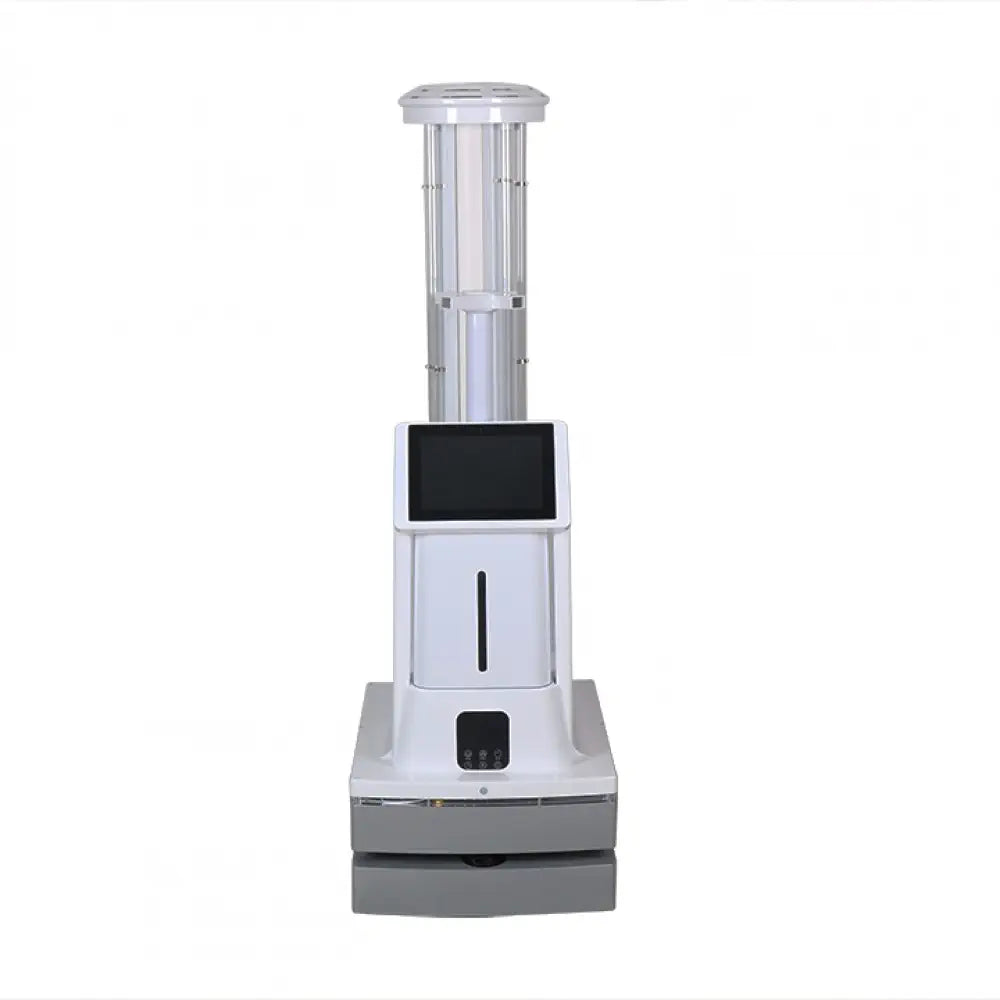

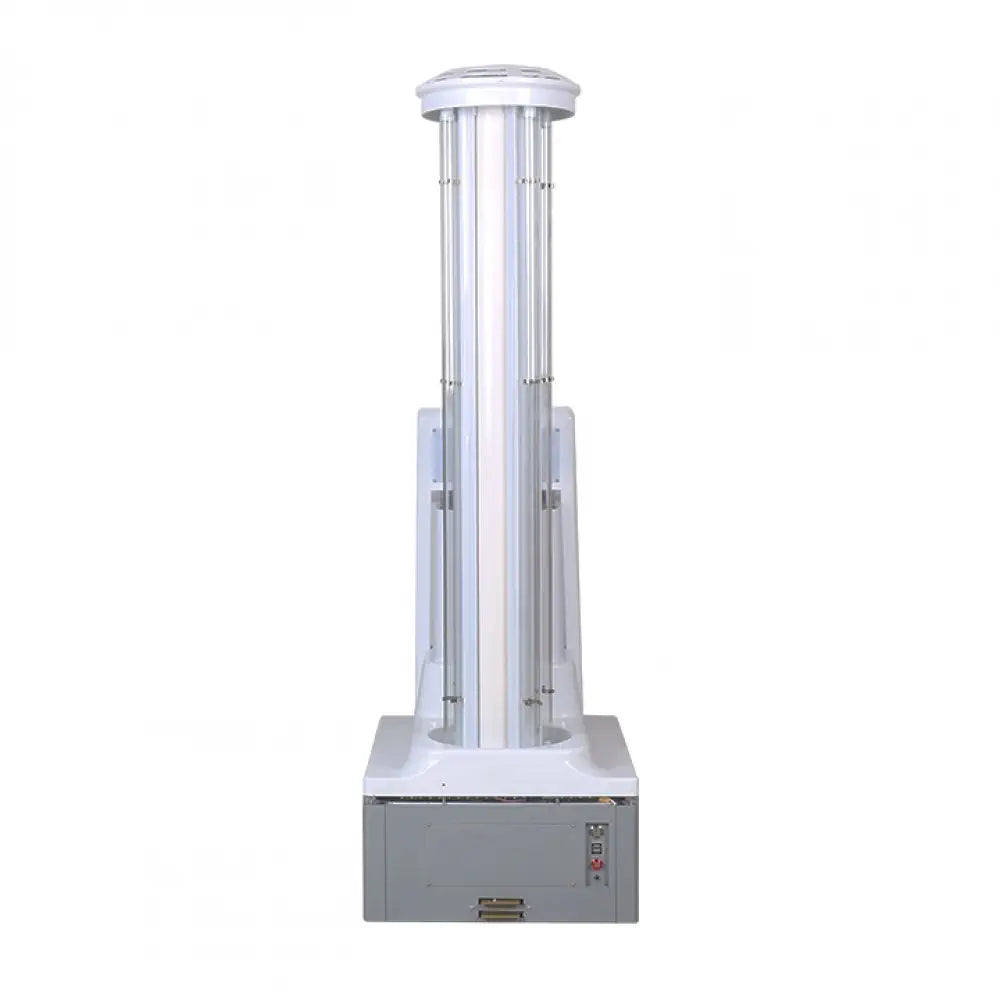

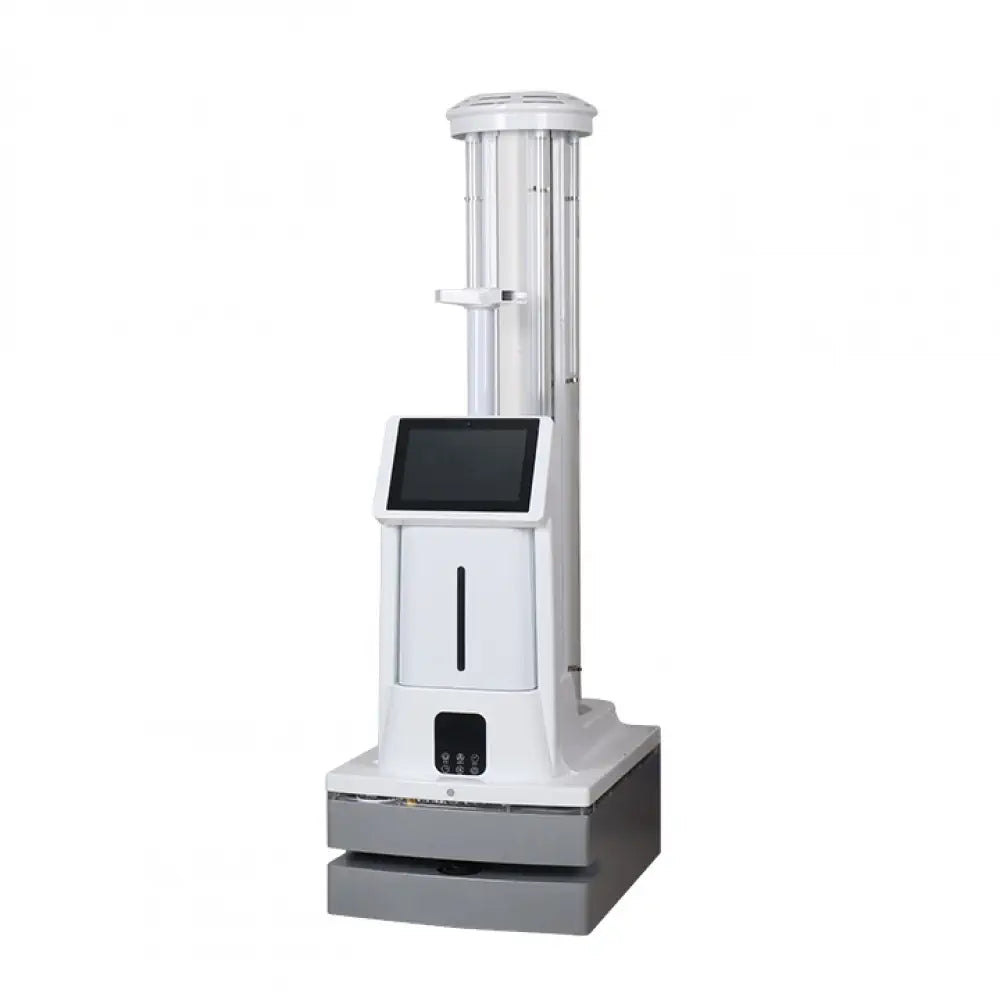

- 1x Dagu Disinfection Robot 102
PDF File
Body
- Chassis dimensions: 635 × 486 × 1530 mm
- Weight (with battery): 50 KG
Battery / Power
- Type: Ternary lithium battery
- Capacity: 24V / 40Ah
- Charging time: ≤2H
- Max charging voltage: 29.4V
- Service life: 80% capacity after 300 cycles
- Endurance (no load): 6H
Wheels
- Drive wheel: 200×50mm, rubber, 150W, 250 r/min, 30 NM max torque
- Caster wheel: 50×25mm, rubber, 50mm rotation radius, 80 KG single bearing (each)
Performance & Safety
- Maximum load: 50 KG
- Maximum operating speed: 0.7 m/s
- Navigation accuracy: 50mm
- Emergency stop button
- Human detection: thermal infrared body sensor
- Remote control: configurable remote control module
Navigation & Communication
- Navigation mode: SLAM
- Path planning: automatic / manual route planning
- Navigation sensor: Lidar (16m range)
- Wireless network: 2.4G/4G WiFi
- Debug port: Ethernet RJ45
- USB: USB 2.0
- Wireless transmission: 200m range
Environmental & Ground Requirements
- Ambient humidity: 5–95% RH (no frosting)
- Operating environment: indoor use only (no dust/corrosive gas)
- Protection rating: IP20
- Ground anti-slip coefficient: ≥0.5
- Ground requirements: level concrete floor (no water/oil/dust)
- Vertical obstacle clearance: 10mm
- Gap-crossing ability: 20mm
Disinfectant Sprayer
- Capacity: 15L
- Mist density: 1500 ml/h
- Applicable area: 60–120 m²
Ultraviolet Lamp
- UV intensity: 117 μW/cm²
Charging Station
- Size: 400 × 128 × 250 mm
- Input voltage: AC 220V
- Output: 29.4V / 7A
- Rated power: 200W
