1x Robot;

1x User Manual;

1x Auto-charging Pile;

1x One-year warranty;

1x 24/7 Technical Support;

• $ATEAGO S9-1000 AGV AMR Warehouse Robot Chassis Rotary Lifting Robot.pdf

docReady(function() {$(‘button[aria-controls=unique-tab-5]’).one(‘click’,function() {$(“#iframe-video-1″).html(”);})});

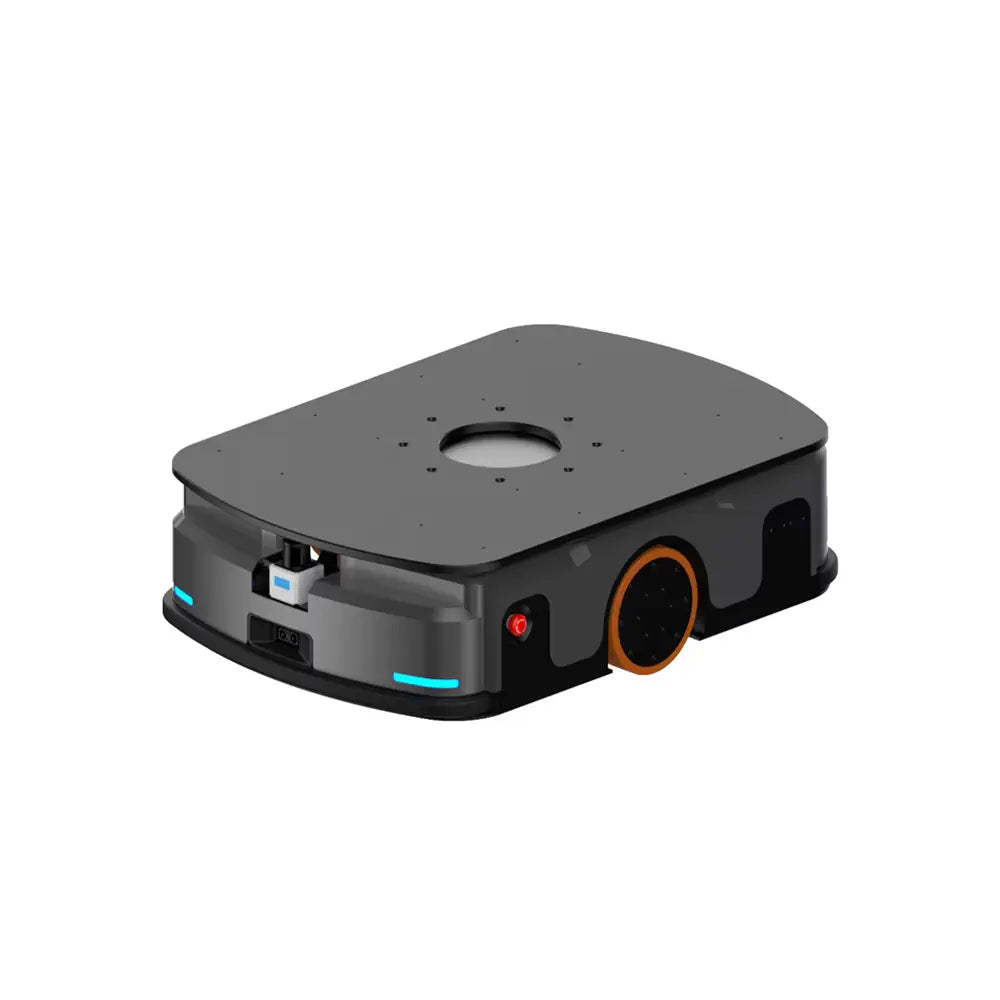

Product name:Laser SLAM Rotary Lifting Robot;

Navigationtype:Laser SLAM;

L × W × H:950 × 650 × 250 mm;

Rotation diameter:1015 mm;

Weight (with battery):221 kg;

Maximum load capacity:1000 kg;

Chassis ground clearance:25 mm;

Lifting platform dimensions:850 × 650 mm;

Maximum lifting height:60±2 mm;

Navigation laser scanning height:194 mm (H1);

Ambient temperature and humidity range:TEMP:0℃ to 50℃ / RH:10% to 90%, no compression, no condensation;

Passability (slope / step / gap):≤5% / 5 mm / 30 mm;

Minimum aisle width:790 mm;

Navigation position accuracy:±5 mm;

Navigation angle accuracy:±0.5°;

Driving speed:≤1.5 m/s;

Battery specififications:48 V / 24 Ah (lithium iron phosphate);

Comprehensive battery life:8 h;

Charging time （10% to 80% ）:≤2 h;

Charging method:Manual / Automatic;
